Connection with MuleSoft

Step 1

Access Anypoint Platform and click Access Management in the left sidebar menu.

Step 2

Create an App:

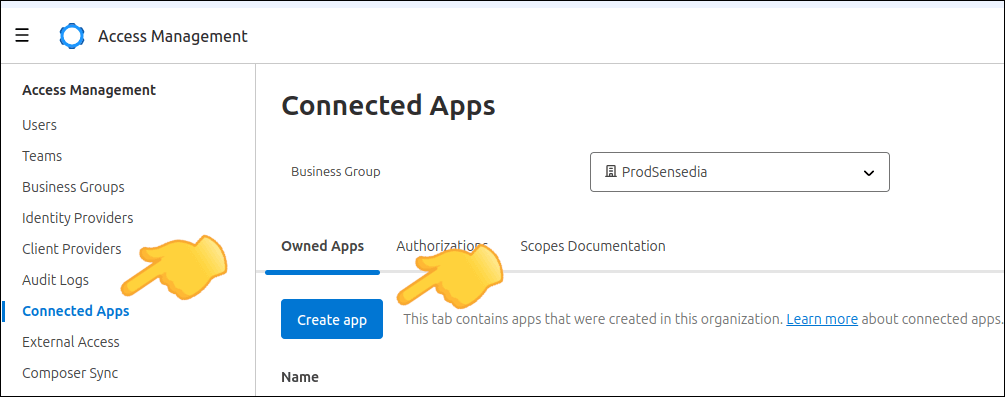

• In the Owned Apps tab, click the Create App button.



• Enter a name to identify the application.

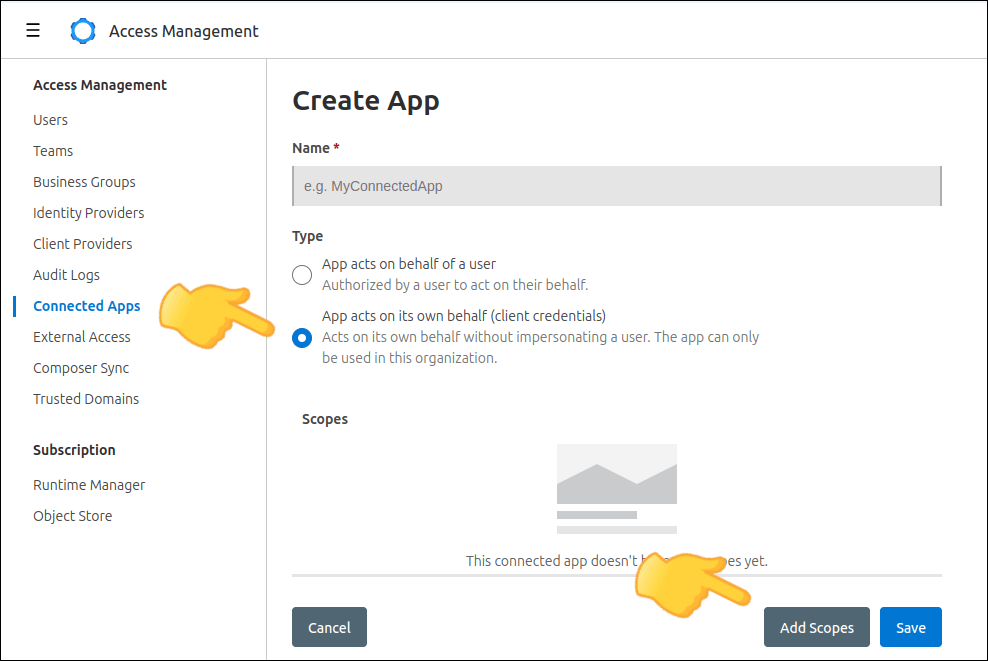

• In Types, select App acts on its own behalf (client credentials). Then, click Add Scopes.



• Select the scopes, specifying which actions the application will be allowed to perform. Make sure to select the scopes:

  • API Manager,
  • Exchange,
  • General, and
  • OpenID Then, click Next.



• Select the business groups that will be made available.

• Select the environments that will be made available (this option is valid only for some scopes).

• After configuring the App, click SAVE.

Step 3

The newly created App will be listed in Connected Apps. Click the Copy ID and Copy secret buttons to copy the credentials.

Step 1

To obtain the Organization ID:

• Access the Anypoint Platform portal.
• In the left sidebar menu, click Business Groups. The Business Group ID is the "Organization ID".

Step 1

Open the Connections screen by clicking on the left sidebar menu or on the card on the home screen.

Step 2

Click the + CREATE CONNECTION button at the top right of the screen.

Step 3

In step 1 - PROVIDER, type or select MuleSoft.

Step 4

Click NEXT.

Step 5

In step 2 - CONNECTION, choose between a native connection (data updated directly with the provider) or a non-native connection (manual upload).

• For a native connection, provide:

  • Connection Name: identifier name for the connection.
  • Organization ID: unique identifier code for Sensedia. See how to obtain it.
  • Client ID and Client secret. See how to obtain them.

• For a non-native connection, provide:

  • Connection Name: identifier name for the connection.

Step 6

In the final step, review the information. If everything is correct, click SAVE.

Step 1

Open the Connections screen by clicking on the left sidebar menu or on the card on the home screen.

Step 2

Find the connection you want to edit and click the icon. If needed, use the search bar to locate the desired connection.

Step 3

On the API Imports screen, click the + IMPORT API button, located just below General Info and above API Imports.

Step 4

Select an environment to view the APIs associated with it.

Step 5

Select the APIs you want to import. If needed, use the API name search. Then, click SAVE.
